Column Formwork for various purposes

COLUMN FORMWORK

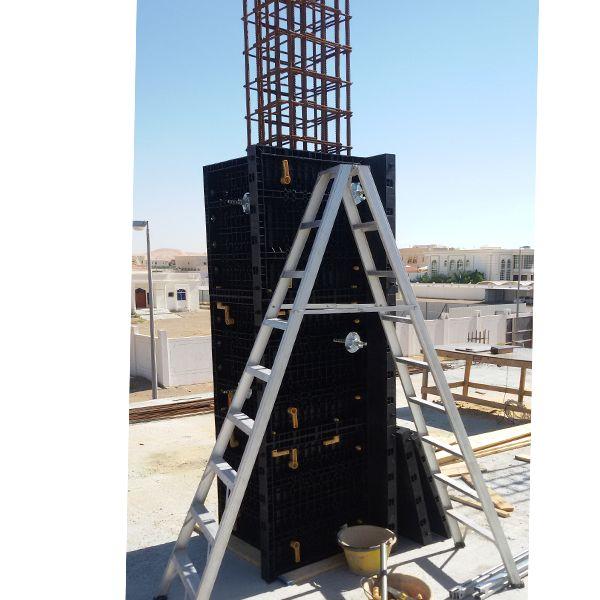

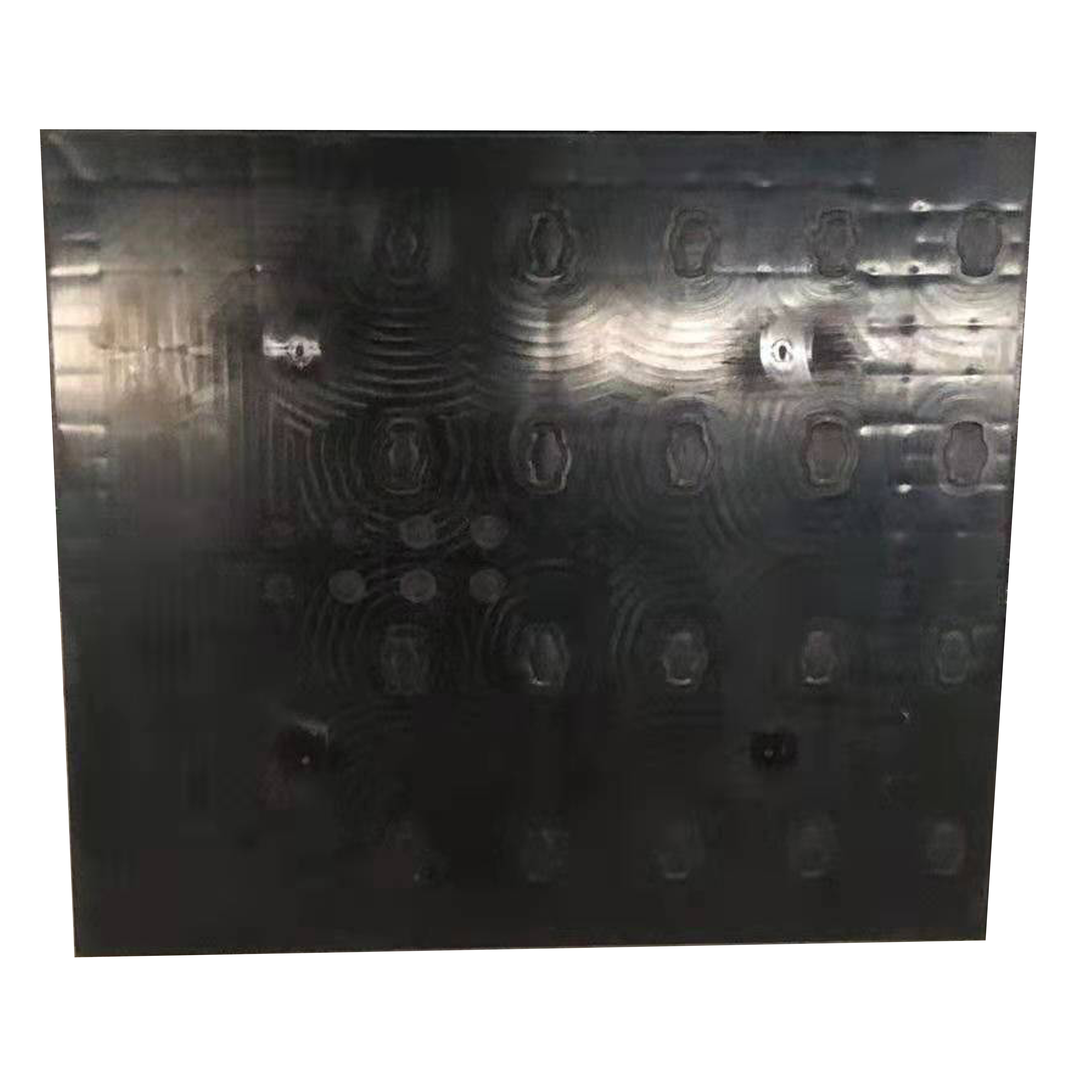

The Column formwork panels are interconnected using the standard nylon locking handles. Each panel will require 9 handles. The forming face has 6 parallel rows of fixing holes to allow the orthogonal connection of the panels in a “star” shape. The rows are placed at a distance of 100/50mm the one from the other, allowing the forming of square and/or rectangular columns with side of 150 to 600mm.

For bigger size column, just make it by outer corners and wall panels.

CODECCOLU1560
SIZE73xH75 CM
WEIGHT8.8 KG
MATERIALPC-ABS

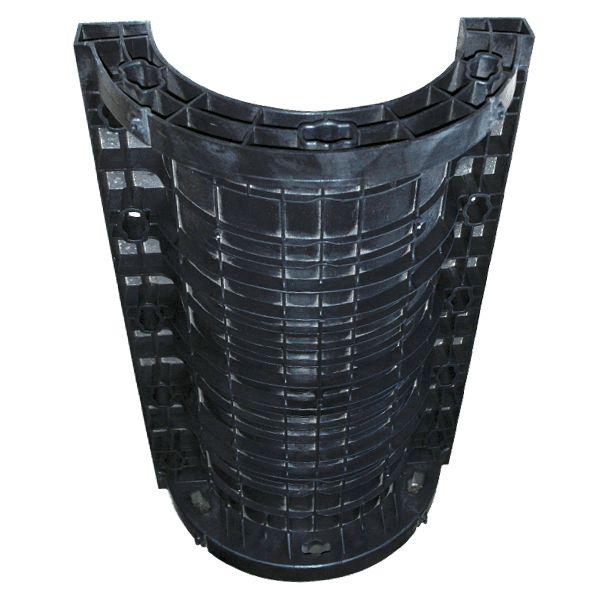

CODECROUN3075
SIZE30xH75 CM
WEIGHT4 KG
MATERIALPC-ABS
CODECROUN3575
SIZE35xH75 CM
WEIGHT4.25KG
MATERIALPC-ABS
CODECROUN4075
SIZE40xH75 CM
WEIGHT4.5 KG
MATERIALPC-ABS
